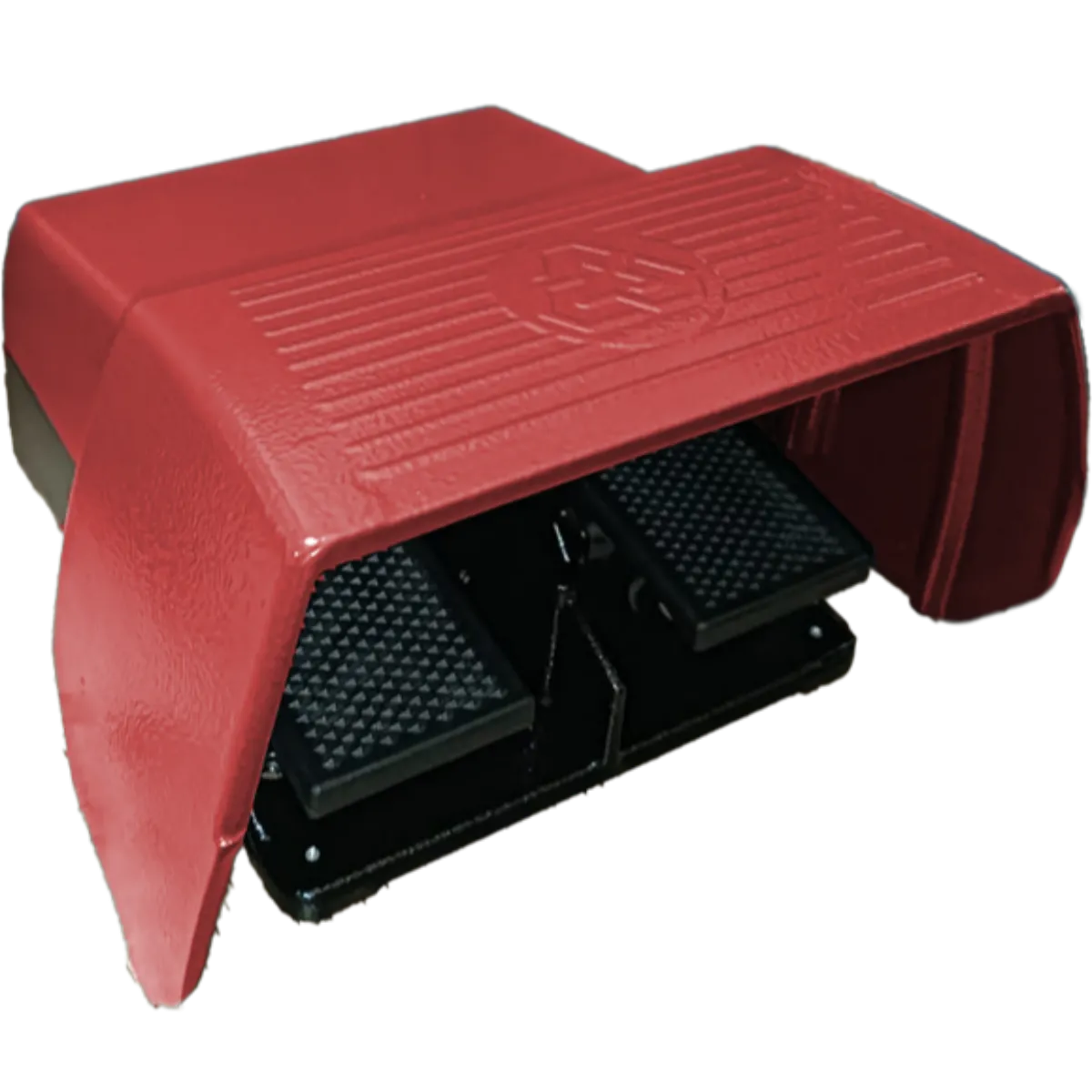

PDL2110

As a leading provider of industrial foot switches, Armendus delivers high-performance solutions designed for demanding industrial environments. Robust construction, exceptional durability, mechanical stability, advanced functionality and uncompromising safety form the core of our engineering approach. A protective shroud safeguards both the pedal and the operator’s foot against external impacts, ensuring superior stability and secure operation. Our extensive range of single-pedal standard foot switches provides versatile solutions tailored to a wide variety of industrial applications.

Net Weight	3.7 kg
Color	Red
Amount in package	1
Package Dimensions	27x27x17cm
Material	Aluminum

Product Configuration Table
PDL X - - -	PDL - X - -	PDL - - X -	PDL - - - X
Pedal Count	Pedal Type	Pedal Color	Hole Diameter
1- Single	0- UNPROTECTED	0- UNPAINTED	0- M20*1,5
2- Double	1- PROTECTED STD (Standard)	1- RED	1- 3/4 NPT
3- Triple	2- PROTECTED + WITH EMERGENCY STOP BUTTON	2- YELLOW	2- M25*1,5
	3- PROTECTED + WITH HANDLE	3- BLACK RAL 9005
	4- PROTECTION + WITH SAFETY	4- ANTHR. GREY RAL 9016
	5- PROTECTION + WITH LED	5- BEIGE - RAL 7035
	6- PROTECTION + WITH CABLE	6- BLUE 5002
		7- GREY RAL 7024
		8- ORANGE RAL 2004

Product Code Structure & Breakdown
PDL X X X X
Foot Switches	Number of Pedals	Type	Colors	Hole Diameter
PDL	1-Single	0-Unprotected	0-Unpainted	0-M20*1.5
PDU	2-Double	1-Protected STD	1-Red	1-3/4 NPT
	3-Triple	2-Protected + with Emergency Stop Button	2-Yellow	2-M25*1.5
		3-Protected + with Handle	3-Black RAL 9005
		4-Protection + Safe	4-Anthr. Grey RAL 9016
		5-Protection + LED	5-Beige RAL 7035
		6-Protection + Cable	6-Blue 5002
			7-Grey RAL 7024
			8-Orange RAL 2004
